Window Options

We offer a high level of customisation options across the Rose Collection sash window range, allowing your customers to tailor our range of windows to their home. The list of features that can be altered is vast, from the more obvious like colour to individual features like bar designs.

Here, you’ll be able to look at the individual options for our sash window’s furniture, glass options, astragal bars, cill options, gasket and brushpile colours, and trickle vents. We have a large number of configuration options to allow your customers the greatest flexibility. It also means if a property is of a specific style, they are more likely to be able to match our sliding sash windows.

Filter Furniture Options

Globe

Acorn

Extra

This premium quality range is exclusive to our Ultimate Rose window.

Acorn furniture comes as standard with our Heritage Rose and Charisma Rose windows.

Available on any window in gold, chrome and white.

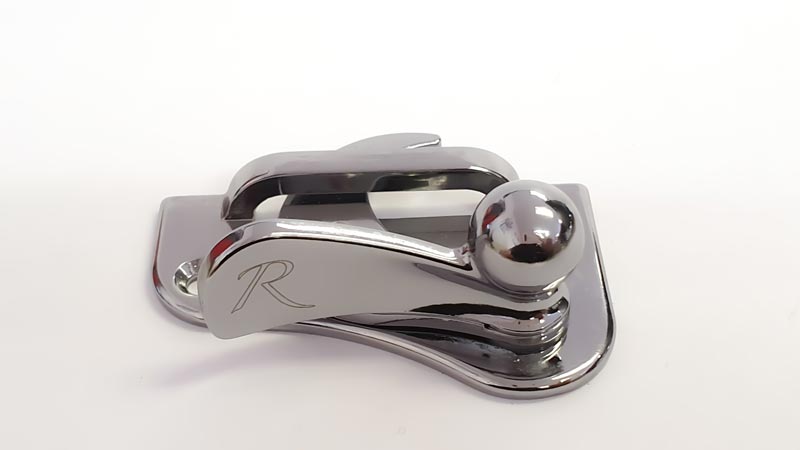

Globe Hook Lock

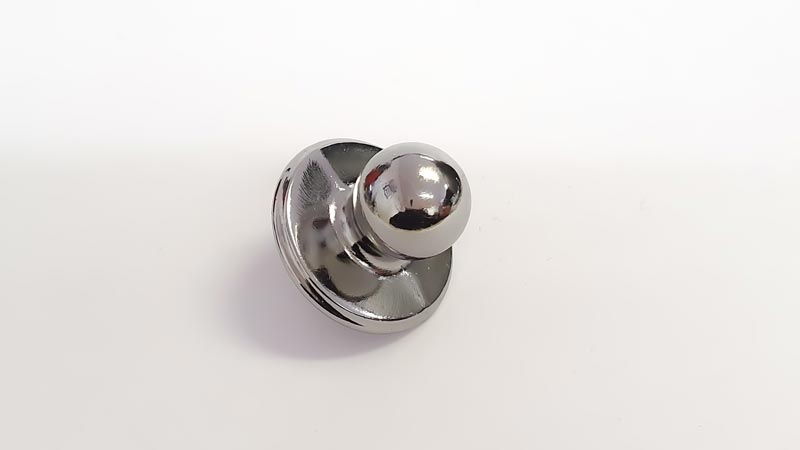

Globe Tilt Knob

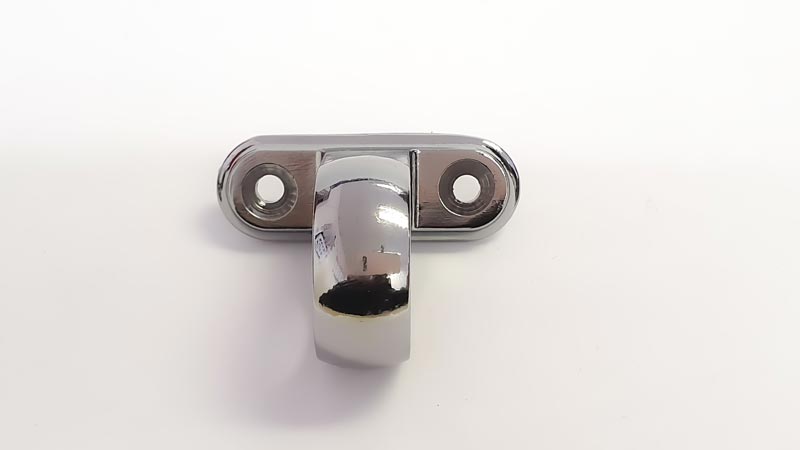

Ultimate Pole Eye

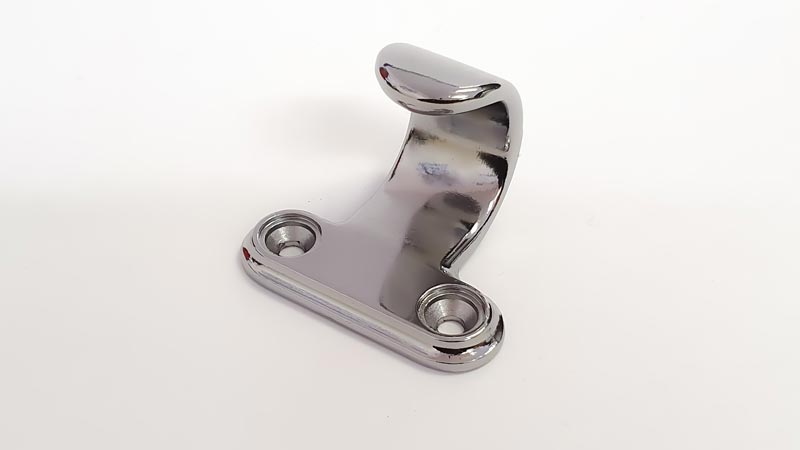

Ultimate Sash Lift

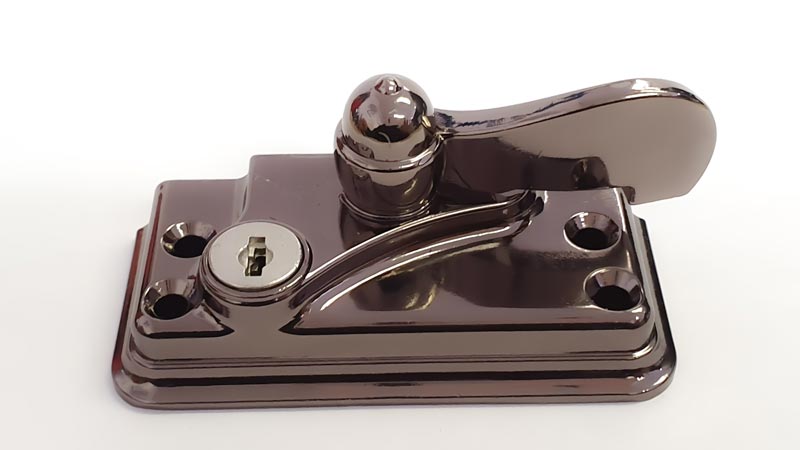

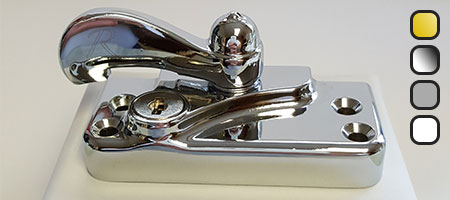

Acorn Lock

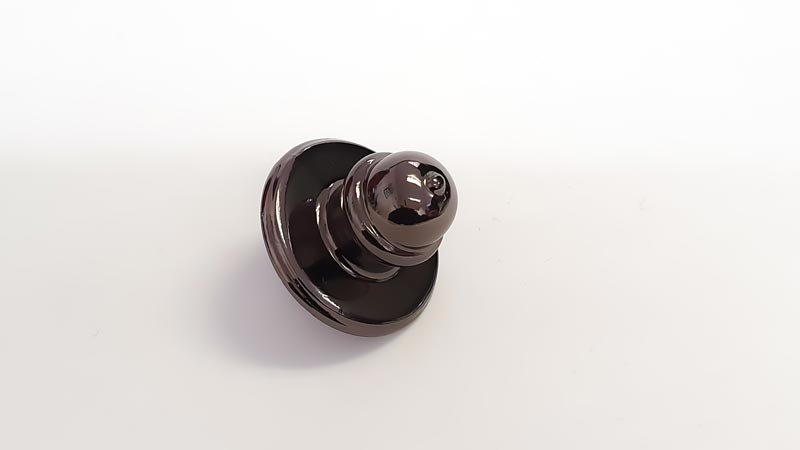

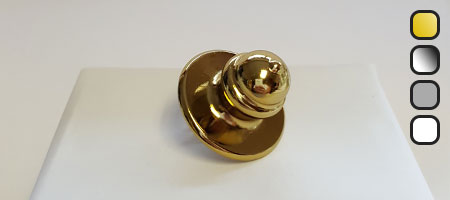

Acorn Tilt Knob

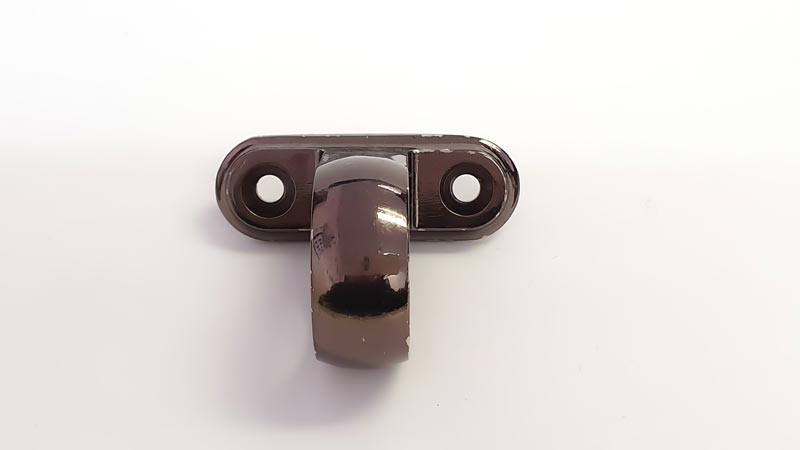

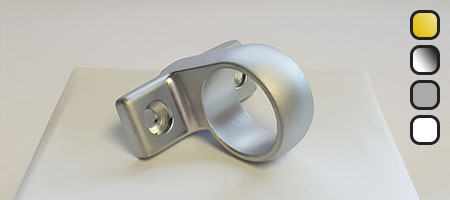

Acorn Pole Eye

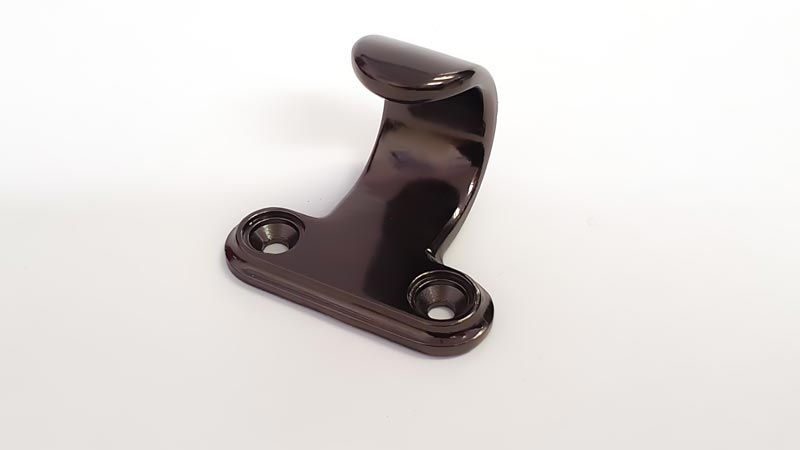

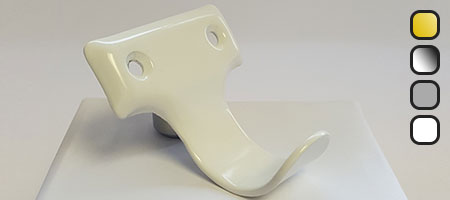

Acorn Sash Lift

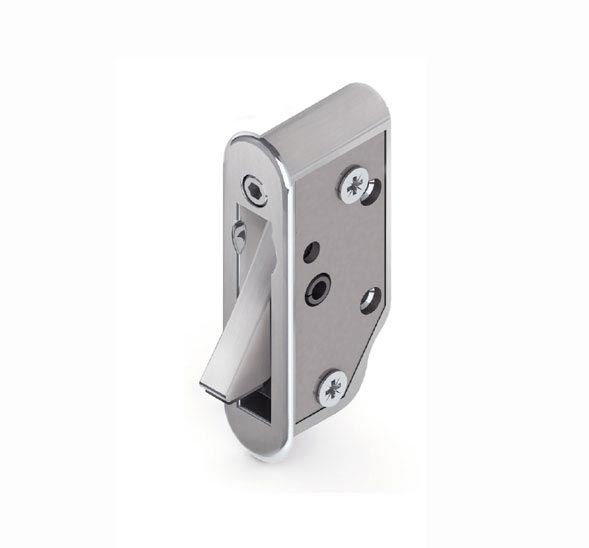

Shark Fin Limit Stop

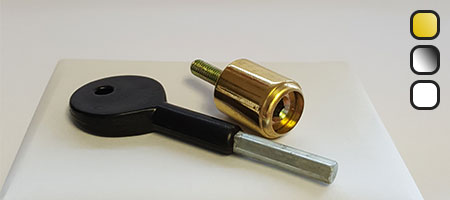

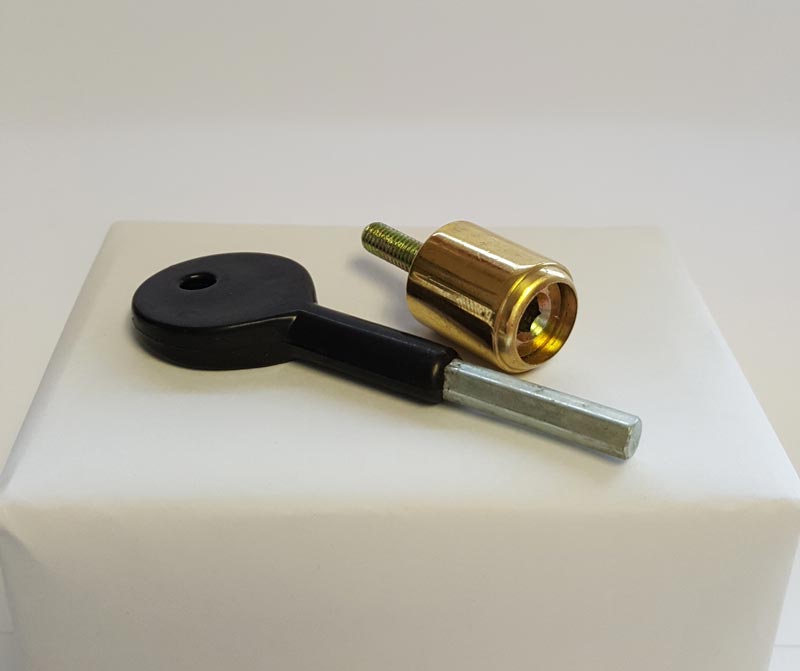

Rola Limit Stop

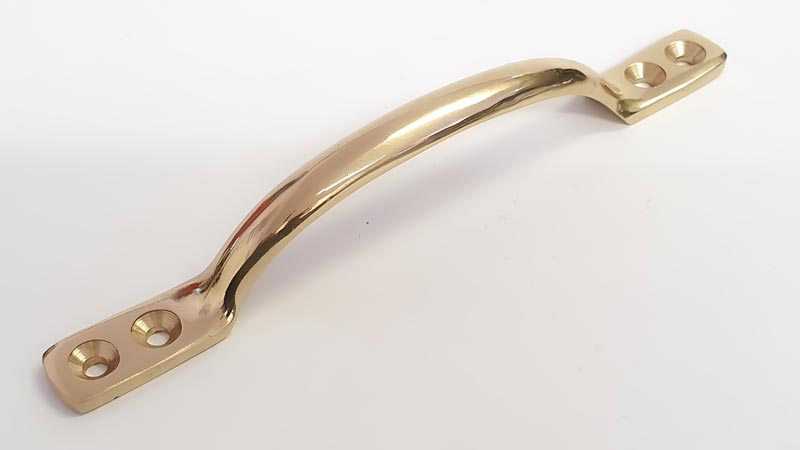

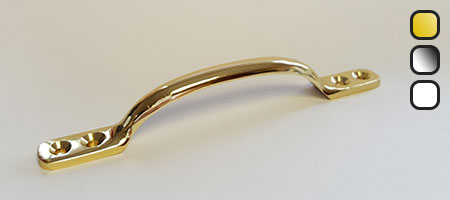

D Handle

Sash Window Furniture

The furniture of our sash windows varies depending on the model you choose. To allow the greatest amount of flexibility, we offer a range of colour options and a selection of extra furniture to fulfil any customer’s requirements.

Windows under 700mm wide come with one pole eye and one lock instead of two. On the other hand, windows over 700mm wide come with two locks, two tilt knobs, two pole eyes on the top sash, and two sash lifts on the bottom sash.

Glass Options

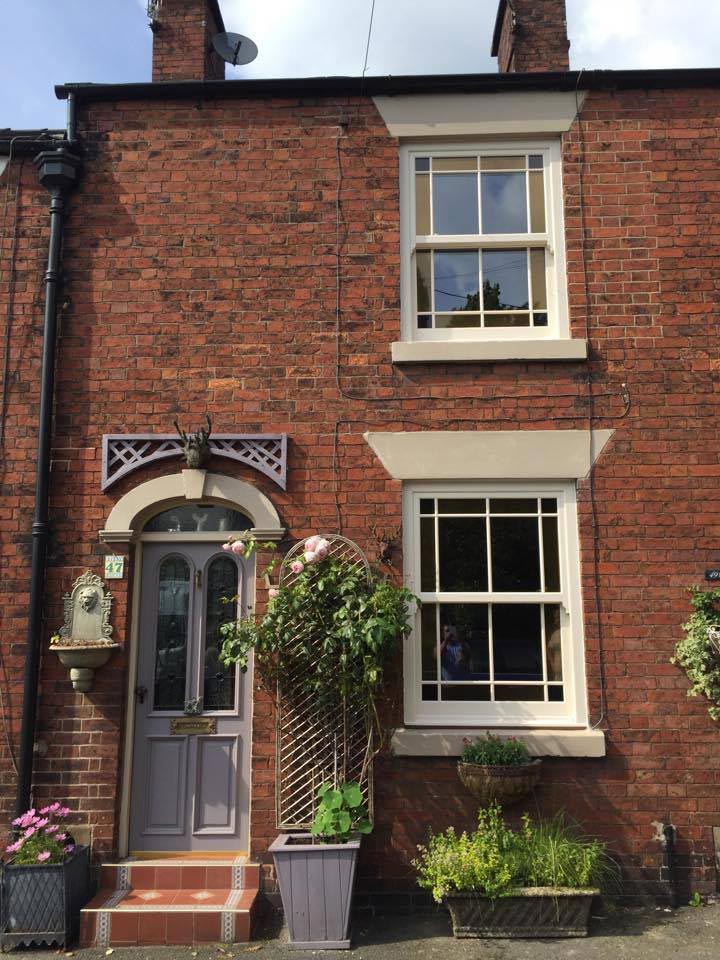

With an A energy rating as standard, our sash windows are all pre glazed with soft coat glass and warm edge spacer bars. They come with a full suite of glazing options for you to select from. That way, whether these windows are being fitted in a residential or commercial setting, we have the ideal glass solution for the project.

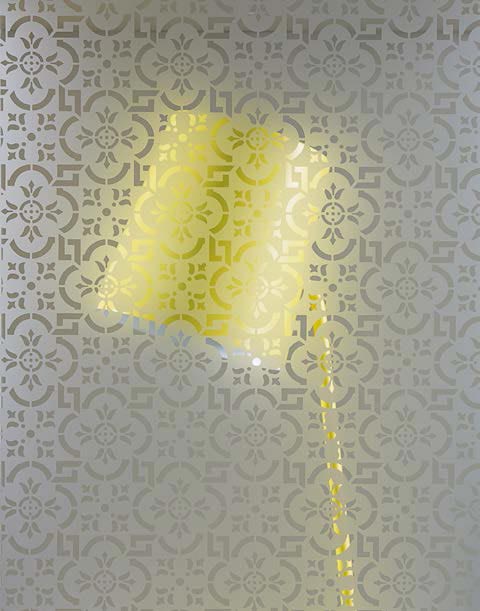

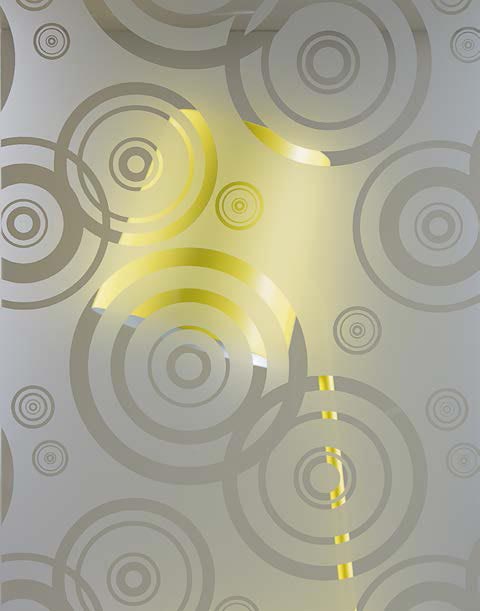

Obscure and patterned glass (including Pilkington Oriel collection)
Toughened and laminated safety glass (including part Q compliant 6.8mm laminated)
Low iron glass
Acoustic laminated glass

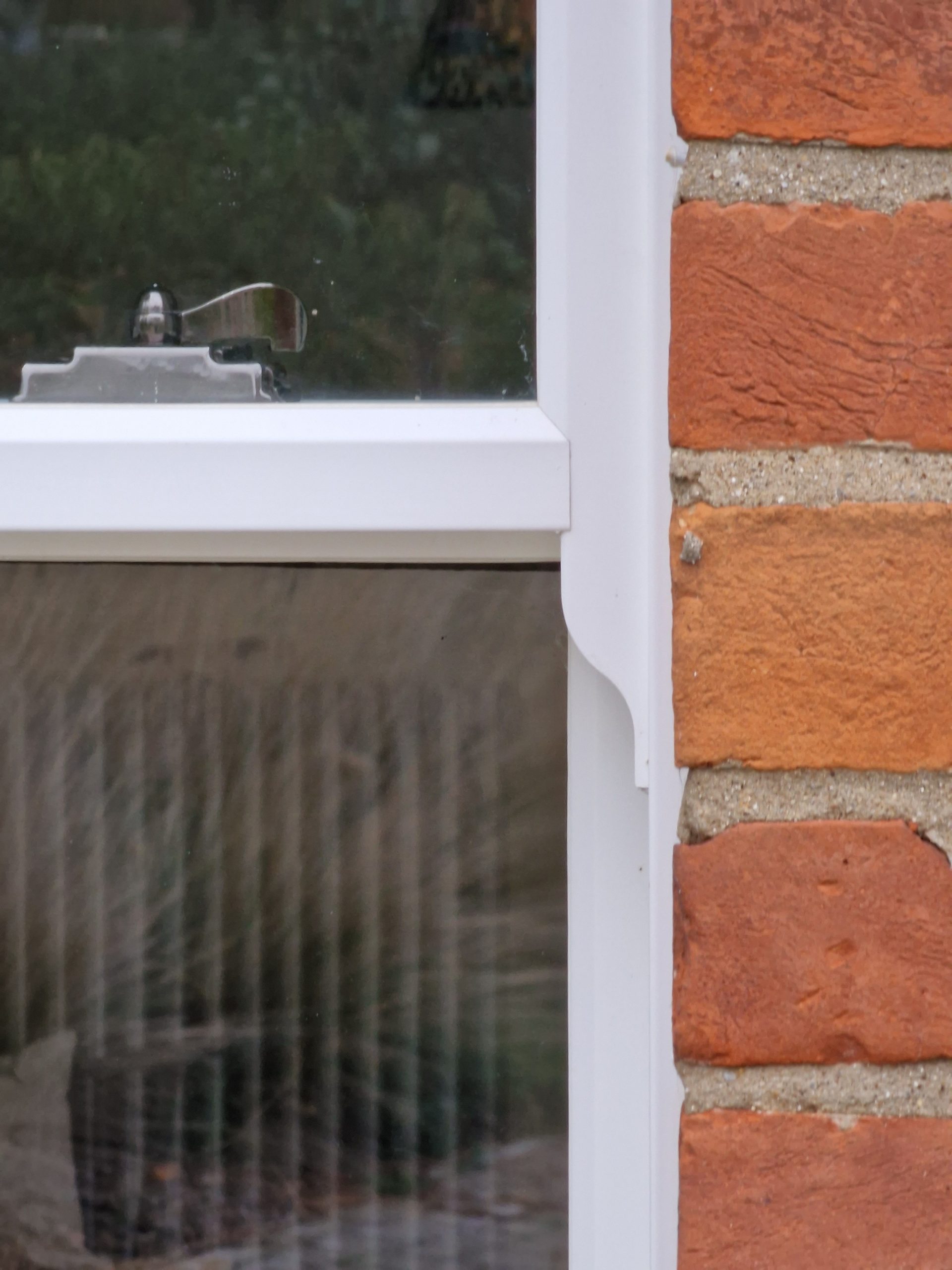

Sash Horns

Across our Rose Collection, we offer expertly designed, beautifully authentic sash horns. Traditionally used to strengthen and support the structure of sash windows, they've evolved into an entirely decorative feature that demonstrates superb craftsmanship.

Ultimate

Heritage & Charisma

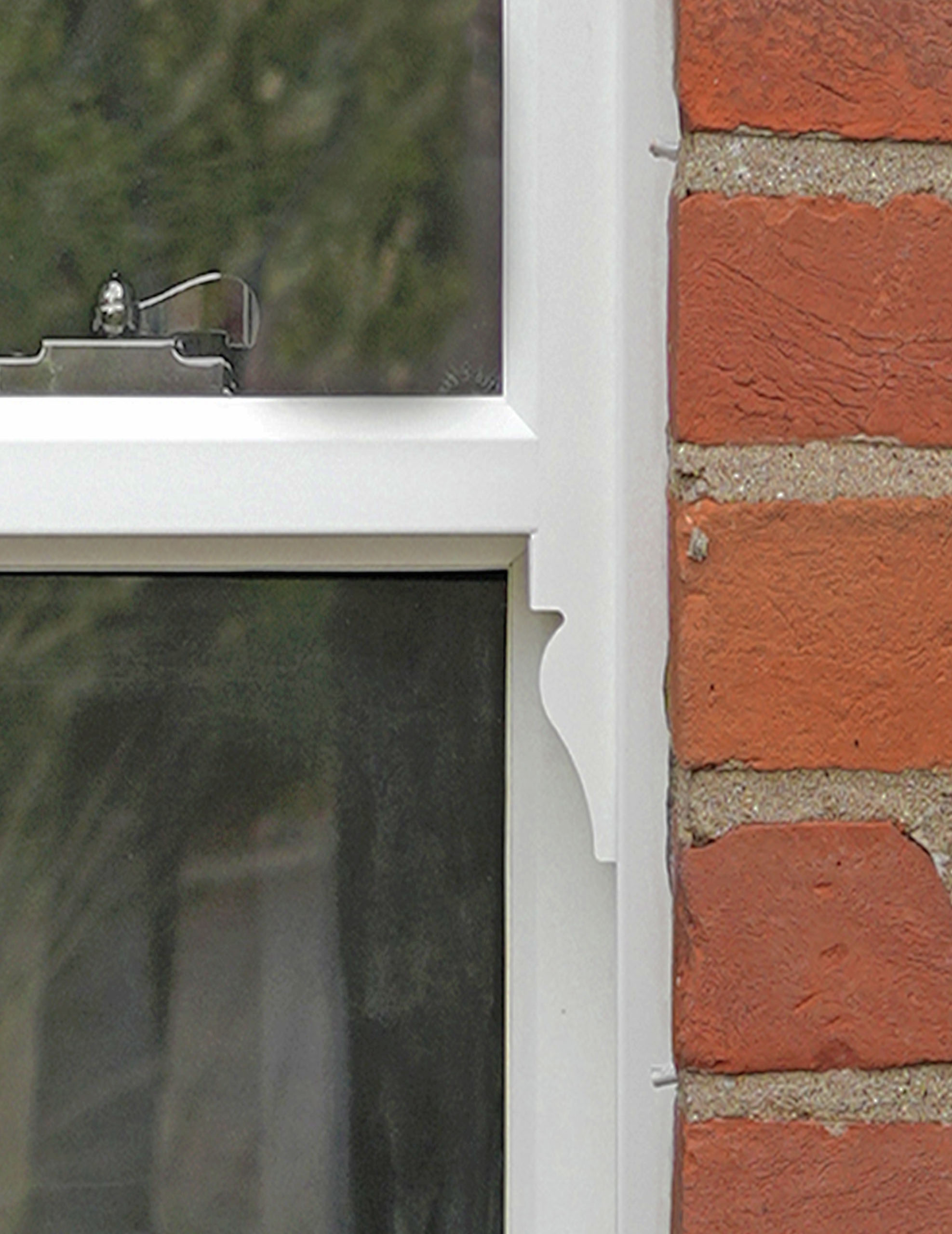

Seahorse Horn

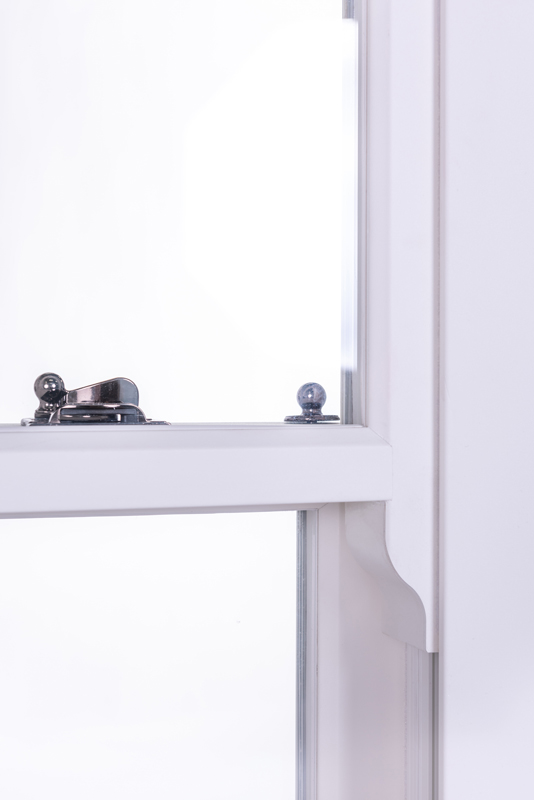

Seamless Run Through

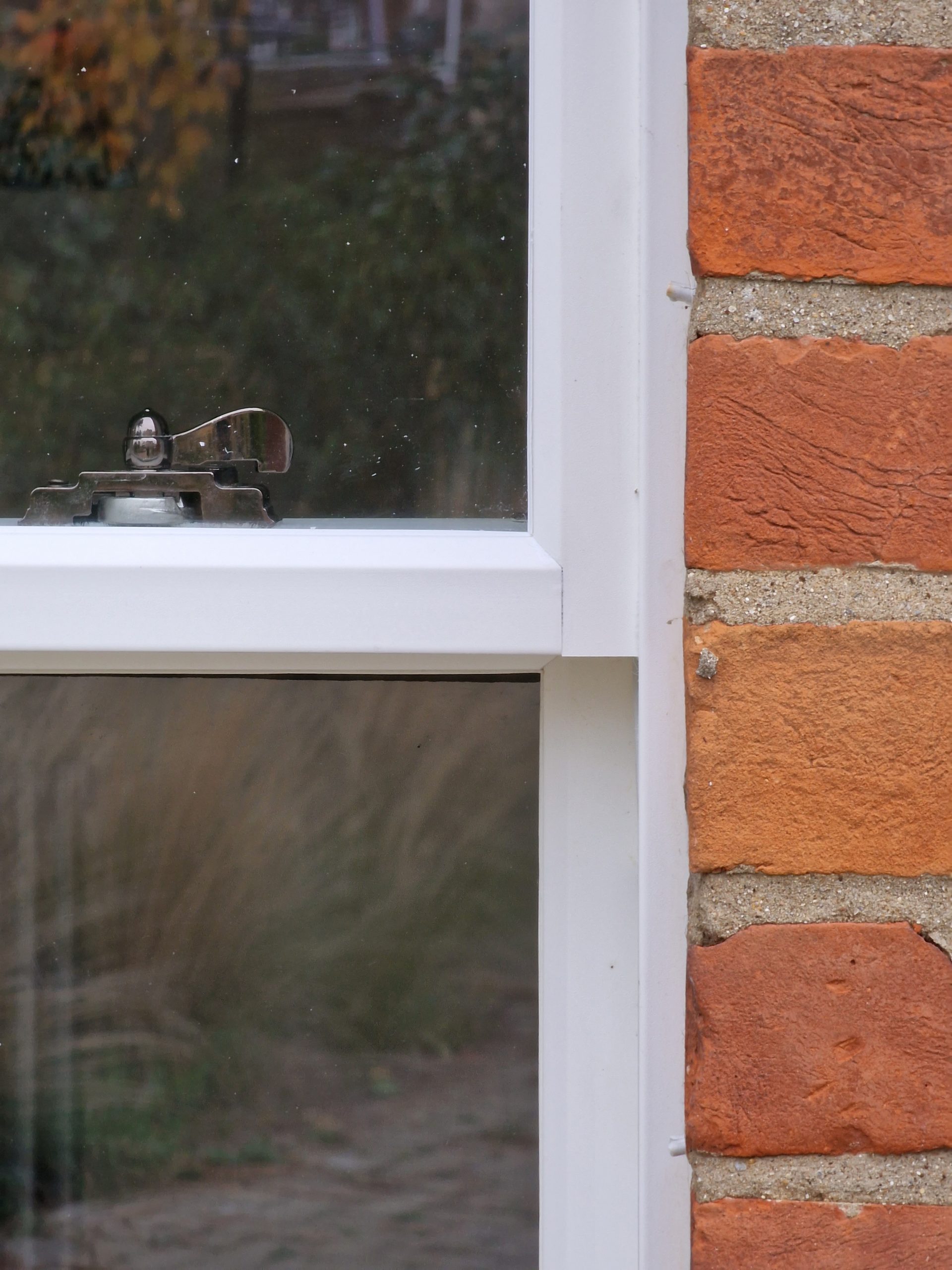

No Horn

Run Through

Clip on Horn

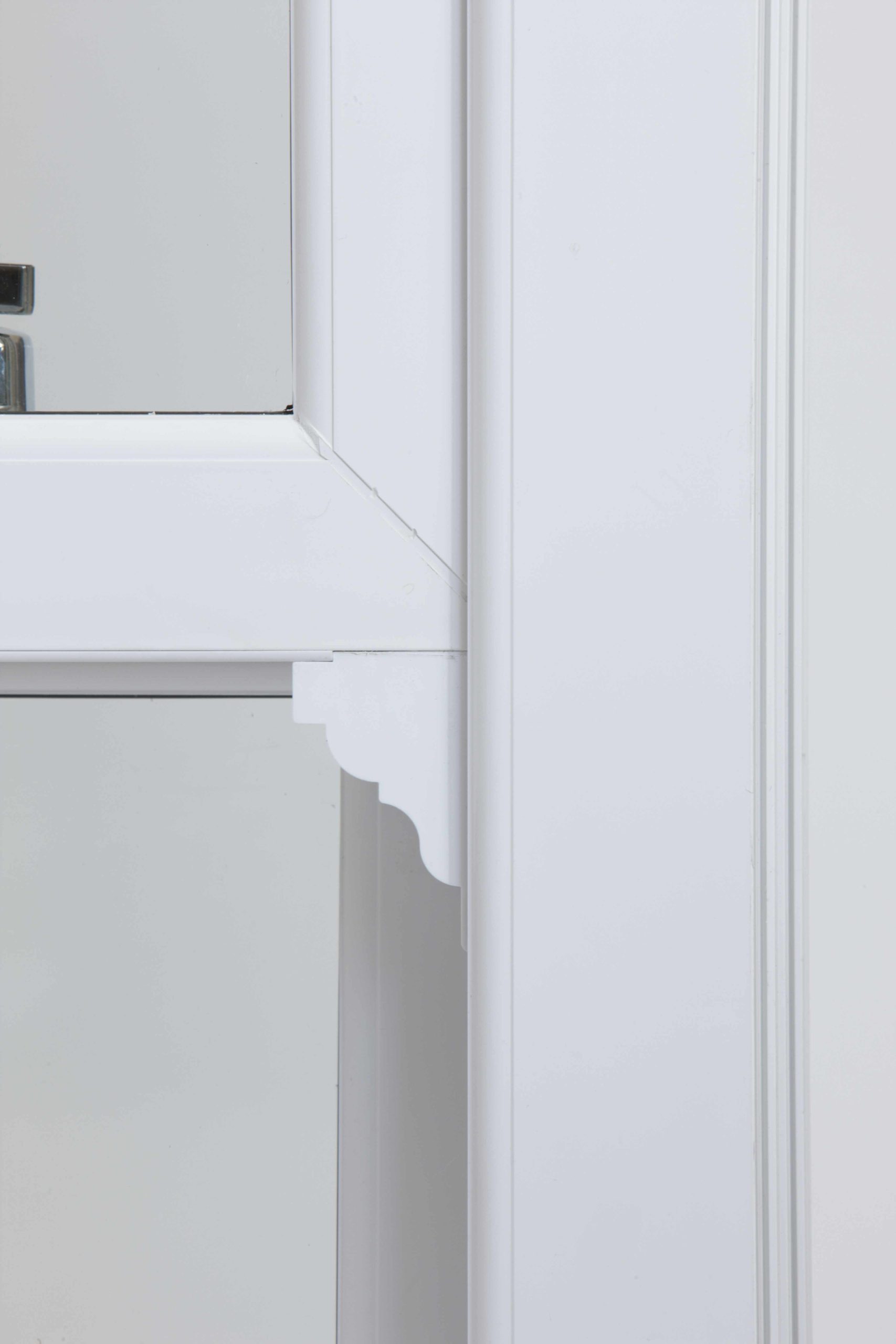

Charisma Rose close up white add on horn

No Horn

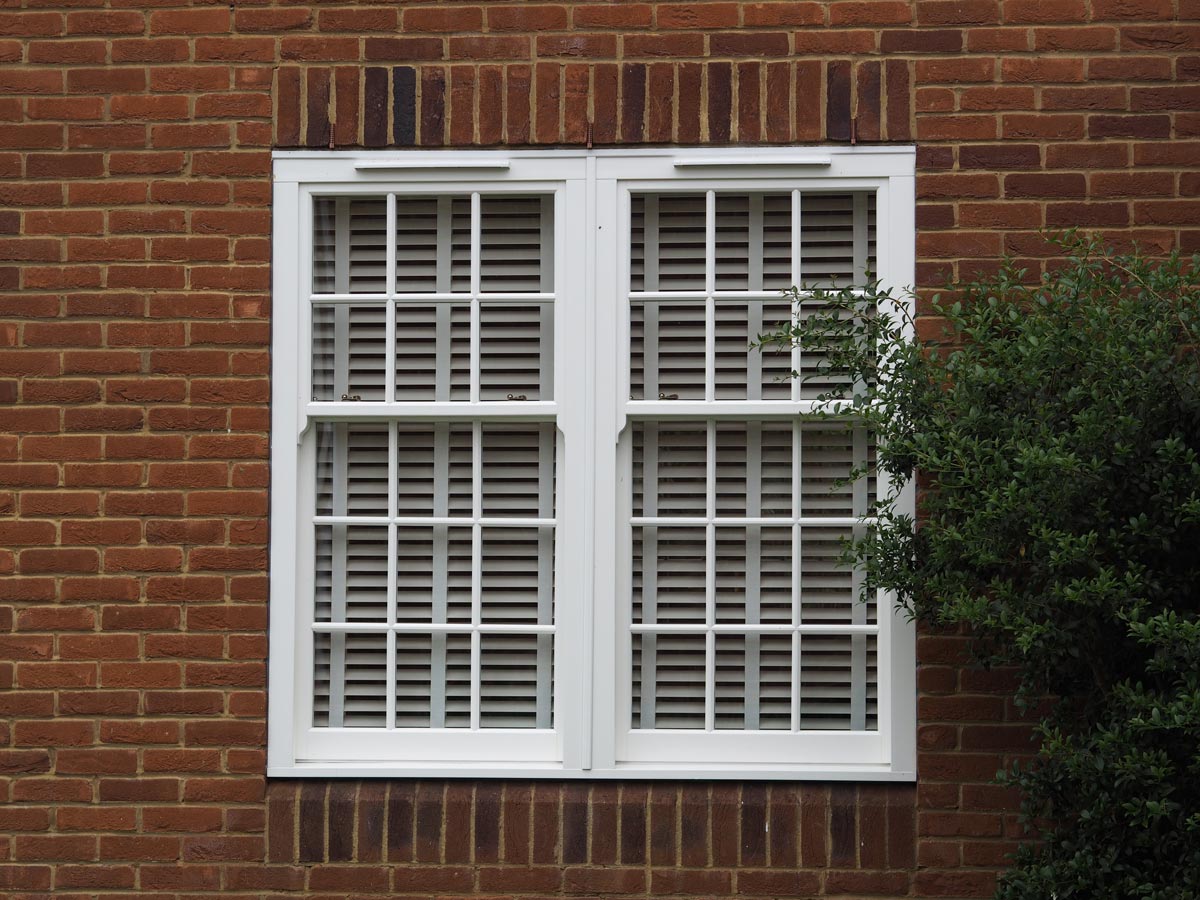

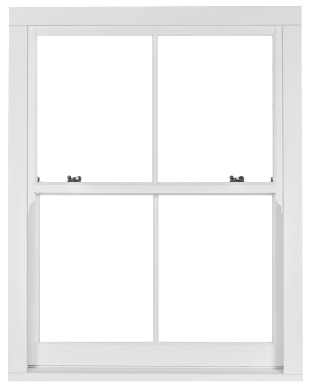

Astragal Bars

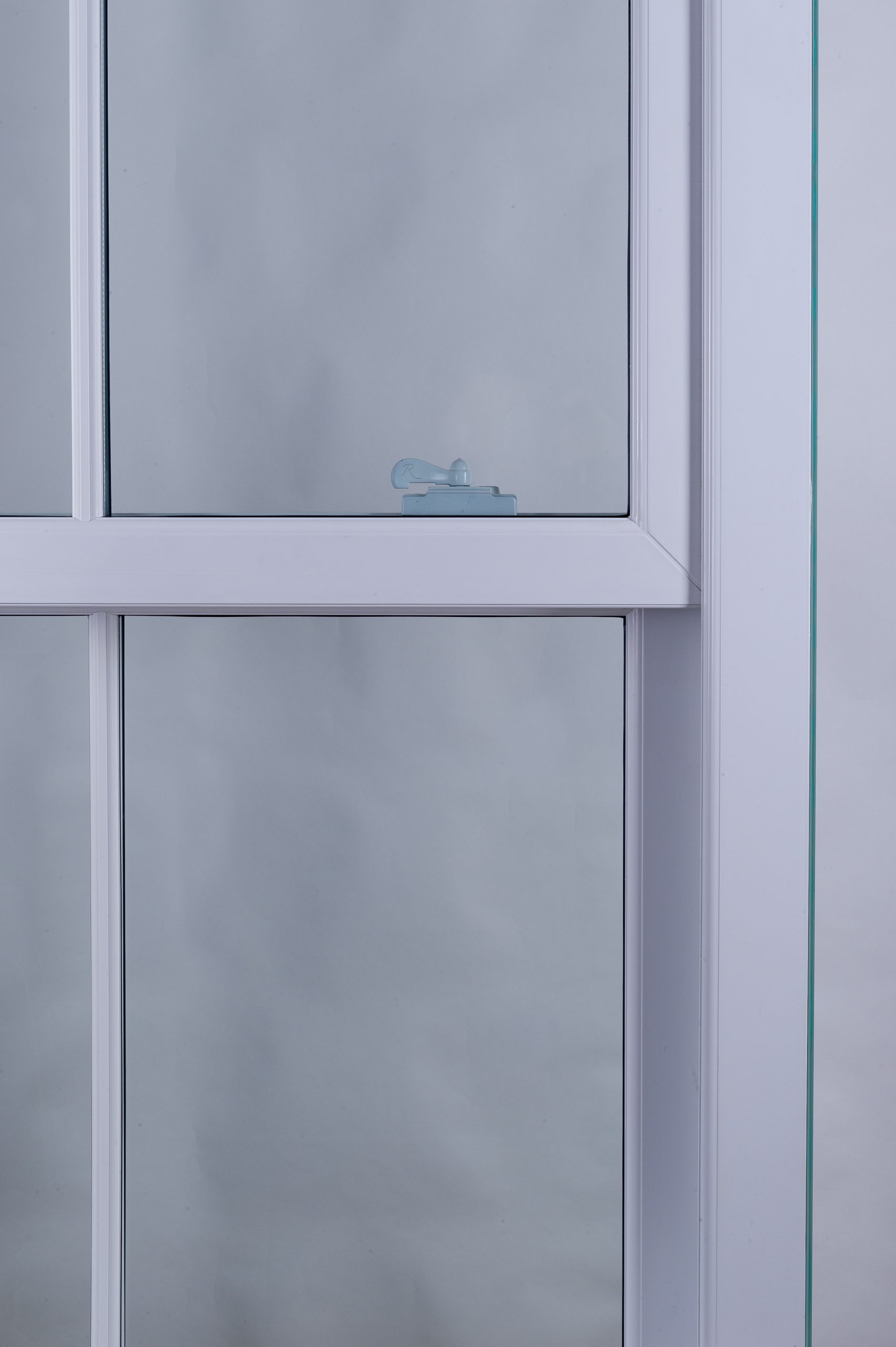

A key feature of our uPVC sliding sash windows, astragal bars are an essential part of traditional design. They are an identifying characteristic of Victorian, Edwardian and Georgian timber sash windows.

We have excellent flexibility and versatility when it comes to astragal bar design for our sliding sash windows, ensuring replication of any period style.Our Ultimate Rose and Heritage Rose windows use authentic, fully putty line chamfered bars on the outside, with ovolo inside the frame. Our Charisma Rose sash windows use cottage style ovolo bars inside and out.

Our astragal barred sash windows use back to back duplex bars inside the glass unit to replicate the style of sperate glass panes. Colour matched to your customers colour option; these will fit with any traditional property.

These bars are manufactured using full length aluminium carrier bars instead of the classic clips and tape approach. This makes our astragal bars stronger and more durable than those you’d get elsewhere.

Some of the most popular astragal bar designs are shown below.

SELECT A STYLE

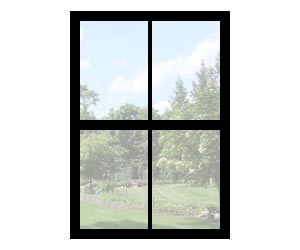

VICTORIAN

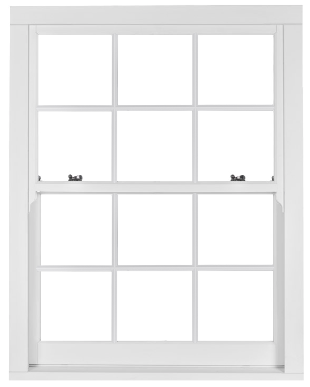

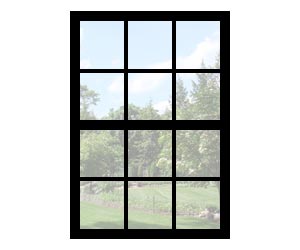

GEORGIAN

EDWARDIAN

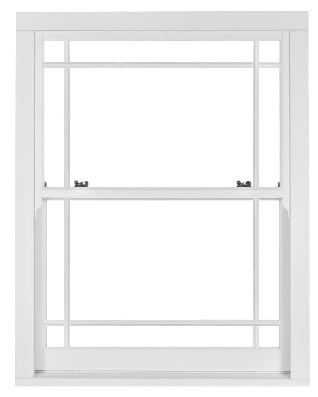

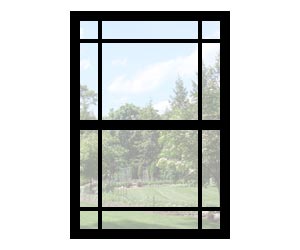

PERIMETER BARS

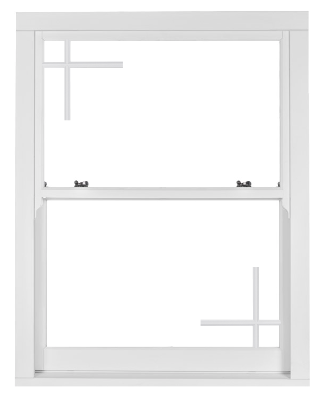

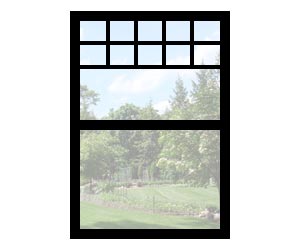

BESPOKE

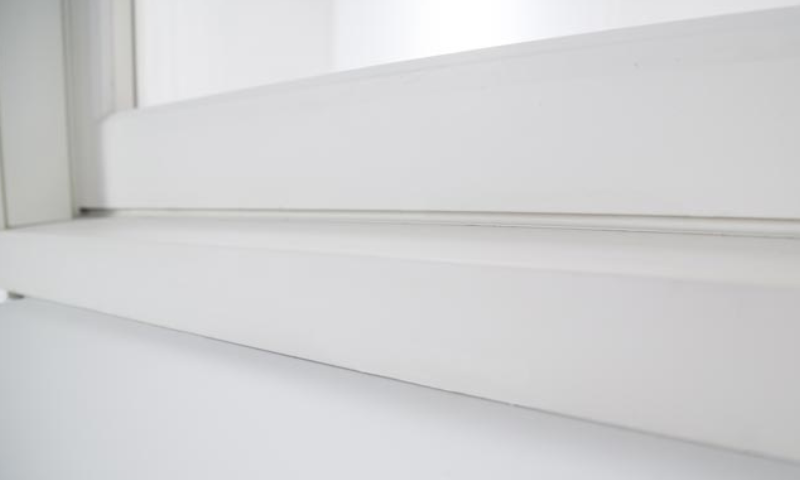

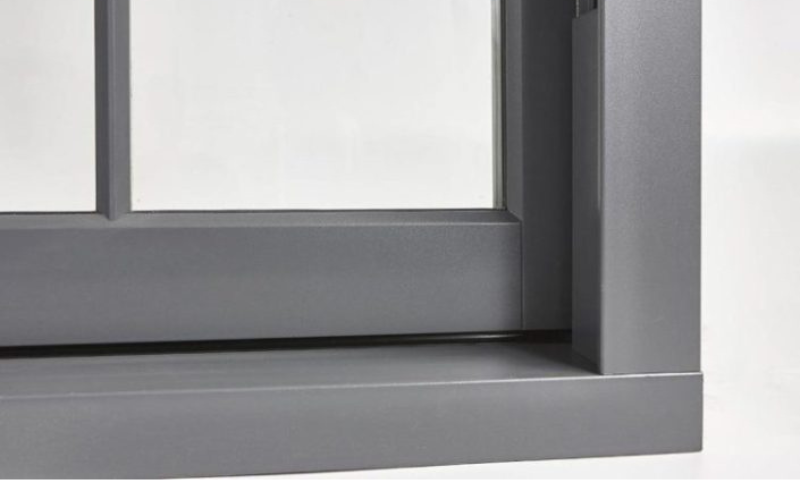

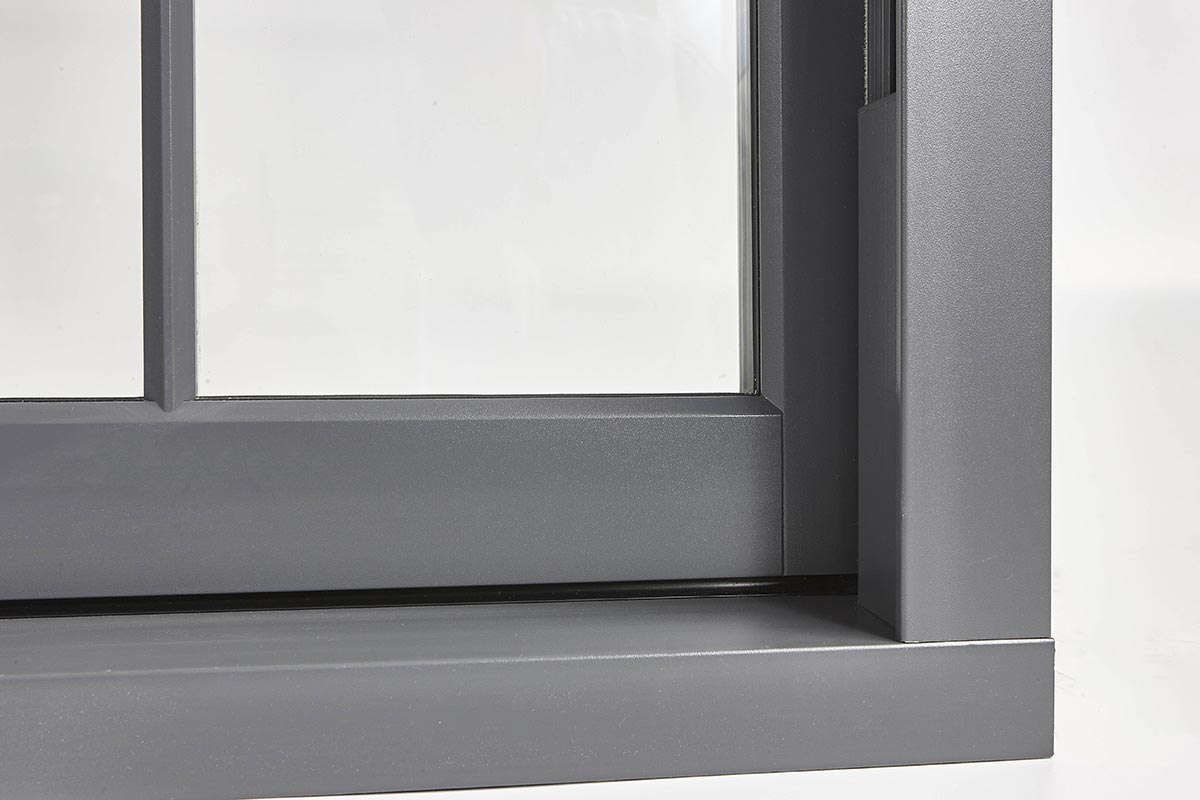

Cills

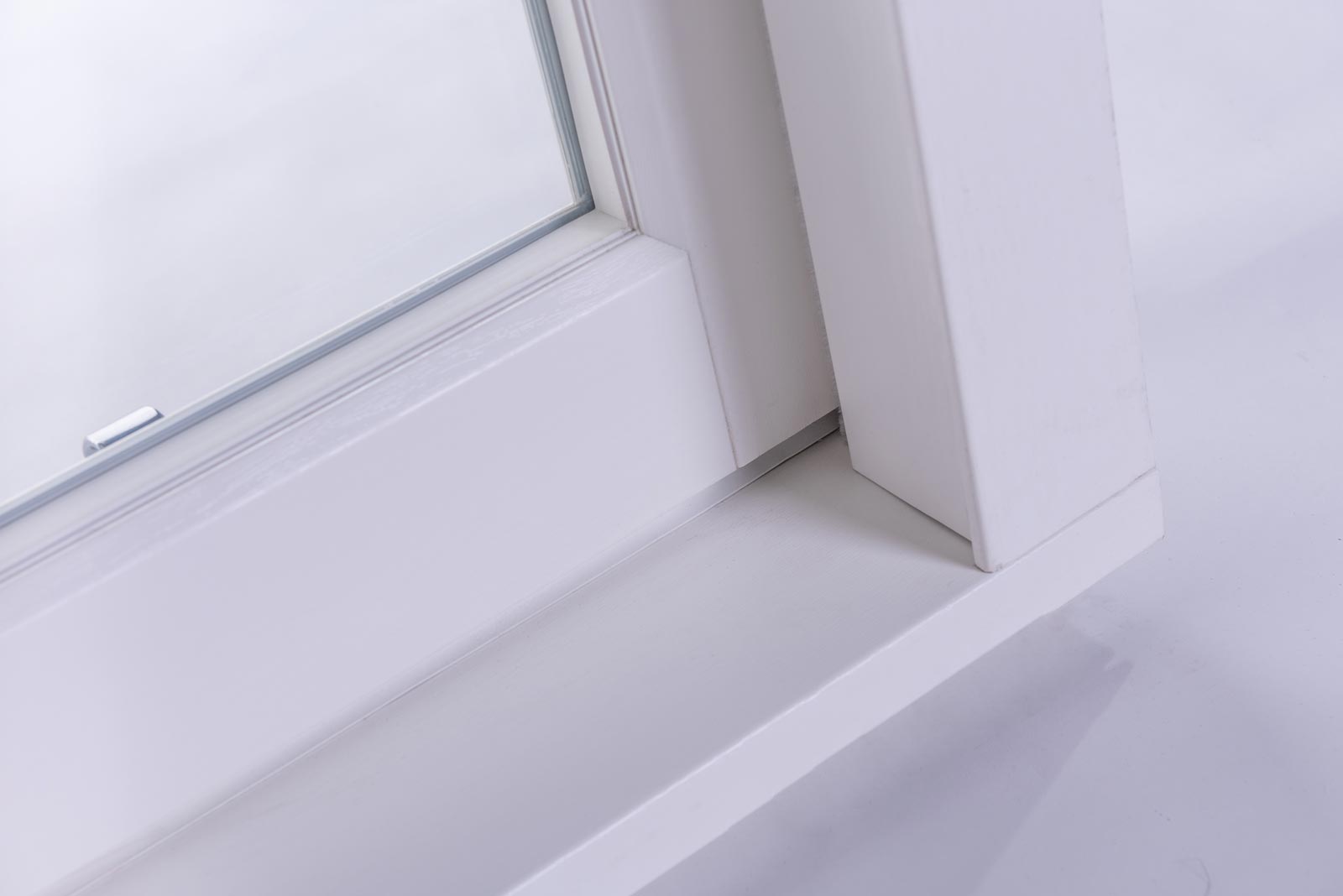

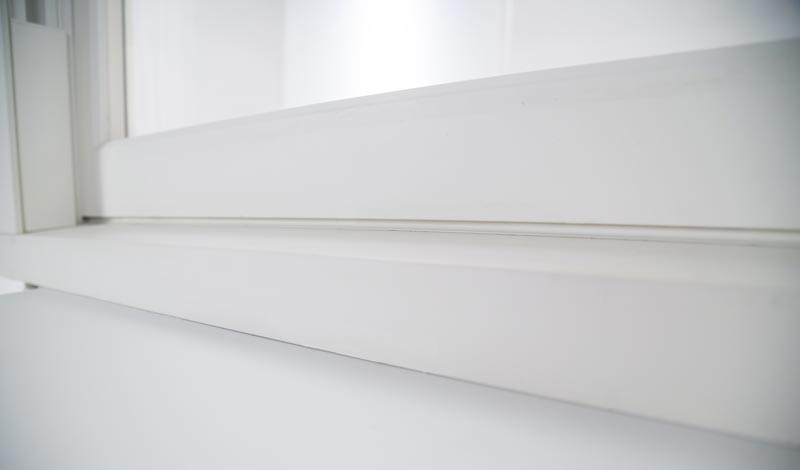

We use integrated flush cills as standard in our Rose collection sash windows, which fit perfectly on top of stone cills. However, we also have a selection of projecting cill options to ensure we fulfil your customers’ requirements.

Ultimate

Heritage

Charisma

Flush

Deep Flush

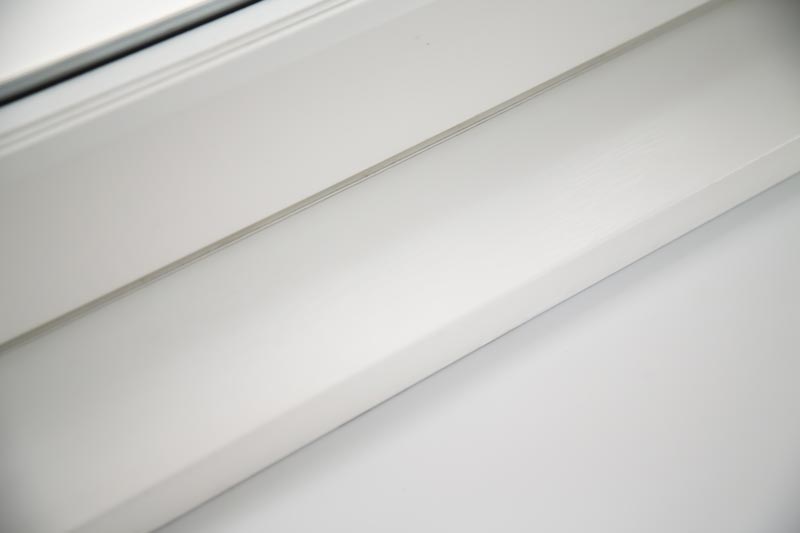

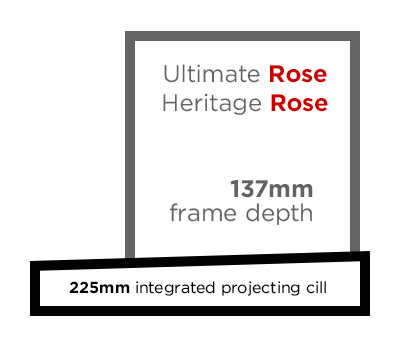

225 Projecting

Flush

225 Projecting

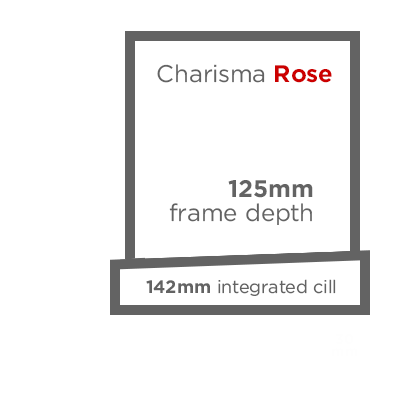

Flush

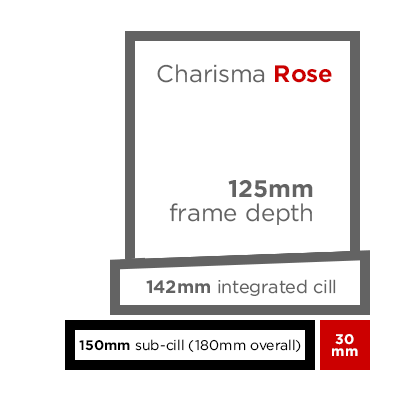

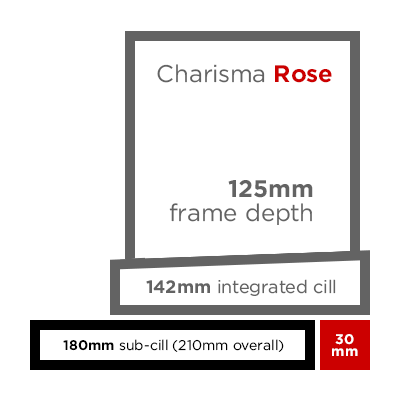

180 Sub-Cill

210 Sub-Cill

Brushpiles. Gaskets & Spacer Bars

Charisma Rose sash windows come with a black gasket and grey brushpile.

Heritage and Ultimate Rose sash windows have the following colour combinations:

*This is for white windows. Some foils are pre-extruded with a set gasket colour.

Model	Gaskets*	Brushpile Option	Space bars
Ultimate	White, grey or black	White or grey	White, silver or black
Heritage	White, grey or black	White or grey	White, silver or black
Charisma	Black	Grey	White, silver or black

*This is for white windows. Some foils are pre-extruded with a set gasket colour.

Trickle Vents

For effective ventilation, our Rose Collection sash windows are available with trickle vents fitted to the top of the sash. This also allows them to be compliant with the latest building regulation requirements.

Eclipse Trickle Vent (UR, HR)

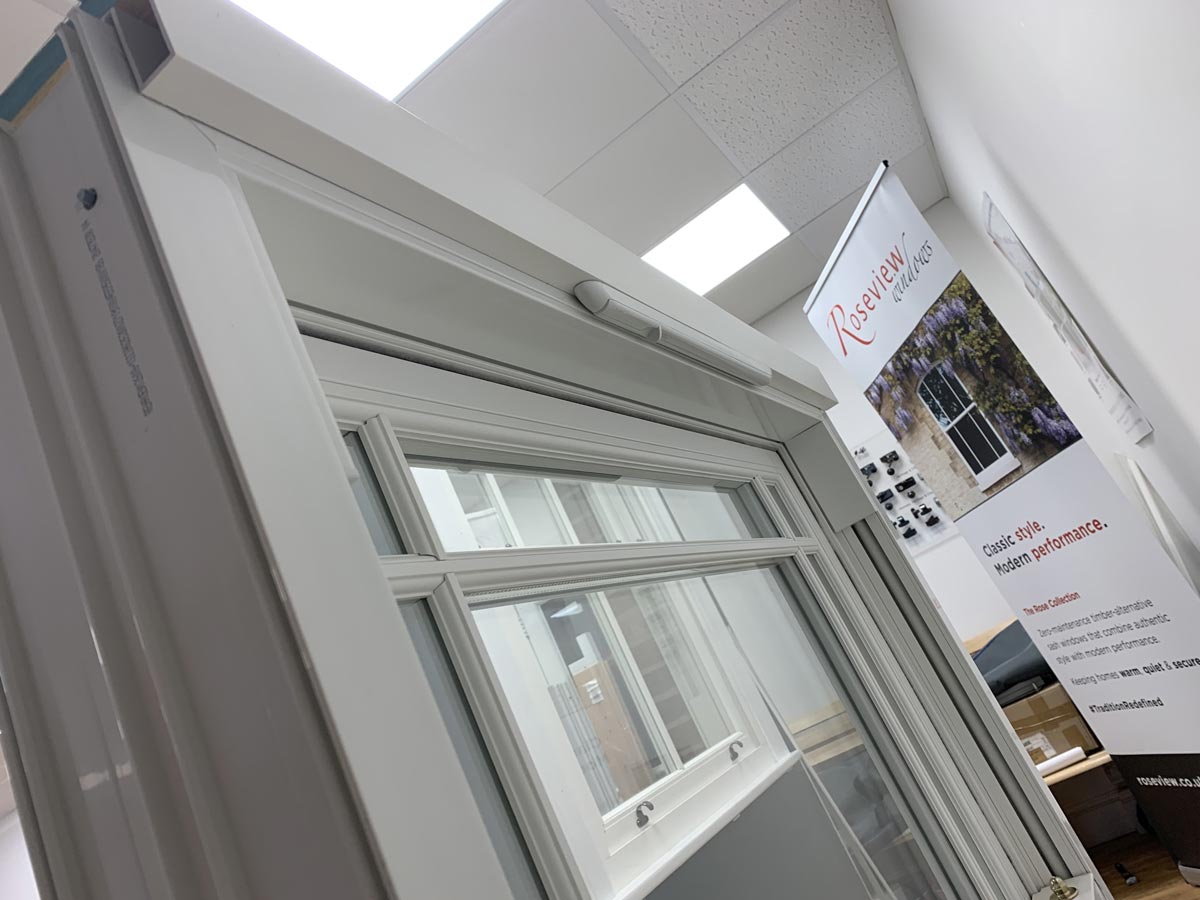

Overhead Trickle Vent (UR, HR, CR)

Trickle Vent in Frame (UR, HR)

Trickle Vent in Sash (UR, HR, CR)

Energy Efficiency

Model	WER	1.5 U-Value	1.4 U-Value	1.2 U-Value
Ultimate	A	Standard	Option (glass upgrade)	Option (ThermoVFlex + glass)
Heritage	A	Standard	Option (glass upgrade)	Option (ThermoVFlex + glass)
Charisma	A	Standard	Option (glass upgrade)	Not Available
